SEAT WARMER UNIT INSPECTION

id091300801400

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

ac5ccw00001619

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  If the resistance on the front passenger's side is inspected, disconnect the seat warmer control unit connector from the seat warmer control unit.

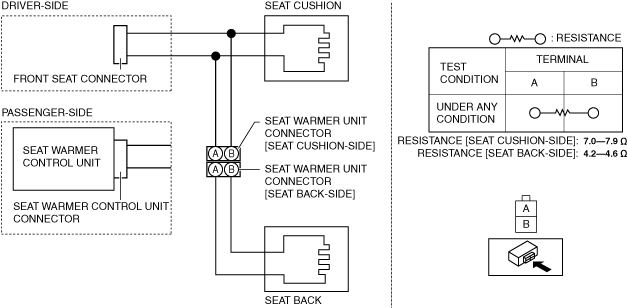

ac3uuw00002615

5.  Disconnect the seat warmer control unit connectors (seat cushion-side, seat back-side).

6.  Verify that the resistance between seat warmer control unit connector terminals A and B is as indicated in the table.

―  If not as indicated in the table, replace the malfunctioning part. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
