RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

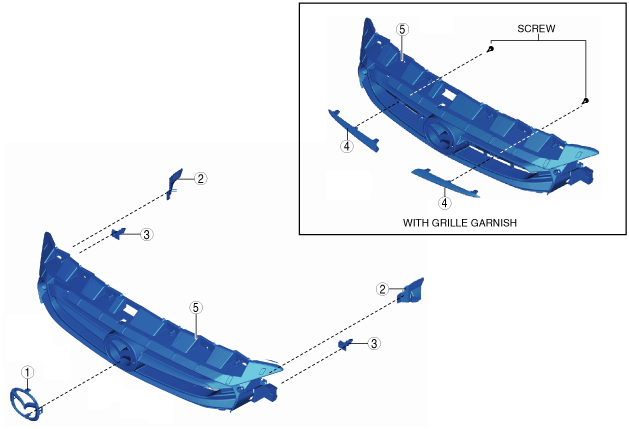

1.  Disassemble in the order indicated in the table.

am2zzw00008942

1	Ornament
2	Seal plate
3	Locator pin
4	Grille garnish (with grille garnish)
5	Radiator grille reinforcement

2.  Assemble in the reverse order of disassembly.
