FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

LH

1.  Lift up the vehicle.

2.  Remove the screw and nuts.

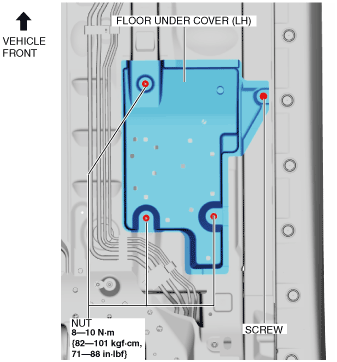

am2zzw00009005

3.  Remove the floor under cover (LH).

4.  Install in the reverse order of removal.

RH

1.  Lift up the vehicle.

2.  Remove the screws and nuts.

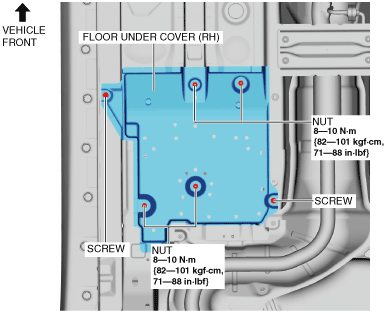

am2zzw00009006

3.  Remove the floor under cover (RH).

4.  Install in the reverse order of removal.
