FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

id091800802300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Partially peel back front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am2zzw00010567

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

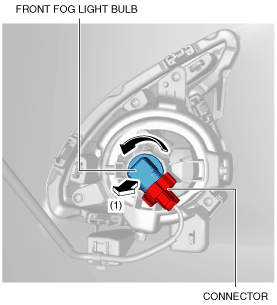

4.  Turn the front fog light bulb counterclockwise and remove it in the direction of arrow (1) shown in the figure.

5.  Install in the reverse order of removal.
