STEERING SWITCH [WITHOUT CENTER DISPLAY]

id0920z9010500


Purpose, Function

•  Operation of the entertainment system and changing of the trip computer system display are possible without a change in driving posture.

Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

Without Bluetooth® unit

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO button, up switch, down switch, and mute button.
am2zzn00003506


With Bluetooth® unit

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO button, up switch, down switch, TALK button, PICK-UP button, and HANG-UP button.

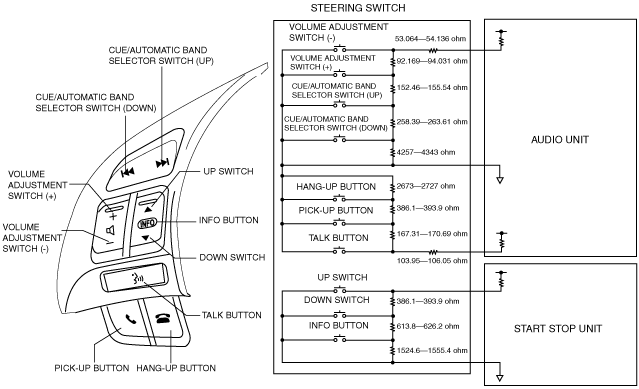

am2zzn00003507


Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cue of CD tracks and selection of radio band are possible.
Mute button (Without Bluetooth® unit)
Audio volume can be muted. Pressing again after muting returns to previous volume level.
INFO button
Instrument cluster display can be changed. Refer to TRIP COMPUTER INFORMATION SYSTEM for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
Up/down switch
Instrument cluster display can be changed. Refer to TRIP COMPUTER INFORMATION SYSTEM for display content. (See TRIP COMPUTER INFORMATION SYSTEM.)
TALK button (With Bluetooth® unit)
Launches the voice recognition function.
Pick-up button (With Bluetooth® unit)
Receives a phone call.
Hang-up button (With Bluetooth® unit)
Hangs up a phone call.


Fail-safe

•  Not applicable
