STEERING SWITCH [WITH CENTER DISPLAY]

id0920zz010500


Purpose, Function

•  Operation of the entertainment system and changing of the trip computer system display are possible without a change in driving posture.

Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

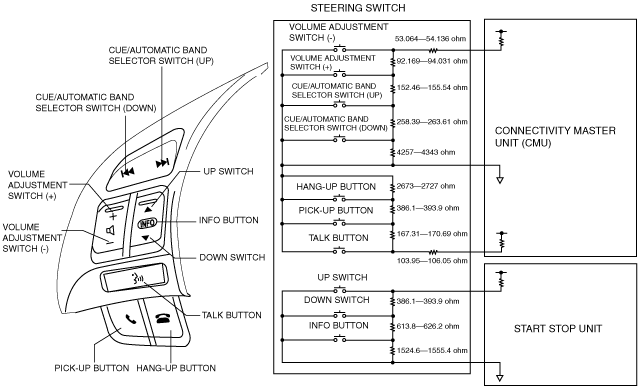

•  The steering switch consists of a volume adjustment switch (+) or (-), cue/automatic band selector switch (up) or (down), INFO button, up/down switch, talk button, pick-up button and hang-up button.
am2zzn00003515

Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cues the CD or switches radio stations.
INFO button
Trip computer system display can be changed. For the display content, refer to the TRIP COMPUTER SYSTEM. (See TRIP COMPUTER INFORMATION SYSTEM.)
Up/down switch
Trip computer system display can be changed. For the display content, refer to the TRIP COMPUTER SYSTEM. (See TRIP COMPUTER INFORMATION SYSTEM.)
Talk button
Initiates voice recognition mode.
Pick-up button
During incoming call
•  Receives phone call
Other than during incoming call
•  Switches display of center display to call history screen.
Hang-up button
Hangs up the phone call.


Fail-safe

•  Not applicable
