ROOM DIMENSIONS (4) [DIMENSIONS]

id098010666800

am2uub00000163

am2uub00000164

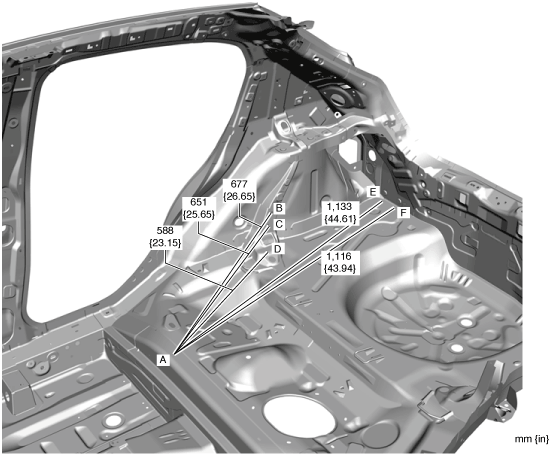

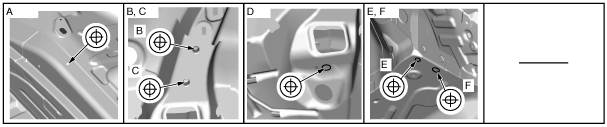

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Crossmember No.3 datum hole	φ10 {0.39}
B	Rear hinge braket installation nut	M10
C	Rear hinge braket installation nut	M10
D	Brace reinforcement datum hole	φ10 {0.39}
E	Floor side panel datum hole	φ10 {0.39}
F	Floor side panel datum hole	φ10 {0.39}
