CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

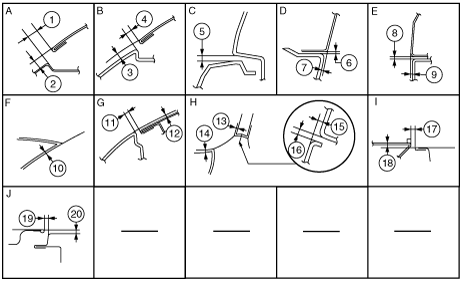

Front View

adejjb00000346

adejjb00000516

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

3.5 {0.14}

5.3 {0.21}

1.7 {0.067}

-

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

2.2 {0.087}

4.1 {0.16}

0.3 {0.01}

-

4

3.9 {0.154}

5.9 {0.23}

1.9 {0.075}

-

C

5

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

1.5 {0.059}

D

6

1.8 {0.071}

3.1 {0.12}

0.5 {0.02}

1.3 {0.051}

7

1.1 {0.043}

2.6 {0.10}

-0.4 {-0.016}

-

E

8

0.5 {0.02}

1.3 {0.051}

-

-

9

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

F

10

0

1.5 {0.059}

-1.5 {-0.059}

-

G

11

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

12

0

1.0 {0.039}

-1.0 {-0.039}

-

H

13

0

1.5 {0.059}

-1.5 {-0.059}

-

14

0

1.5 {0.059}

-1.5 {-0.059}

-

15

0

1.0 {0.039}

-1.0 {-0.039}

-

16

3.7 {0.15}

4.7 {0.19}

3.0 {0.12}

1.0 {0.039}

I

17

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

18

0

1.0 {0.039}

-1.0 {-0.039}

-

J

19

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

20

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	3.5 {0.14}	5.3 {0.21}	1.7 {0.067}	-
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	2.2 {0.087}	4.1 {0.16}	0.3 {0.01}	-
4	3.9 {0.154}	5.9 {0.23}	1.9 {0.075}	-
C	5	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	1.5 {0.059}
D	6	1.8 {0.071}	3.1 {0.12}	0.5 {0.02}	1.3 {0.051}
7	1.1 {0.043}	2.6 {0.10}	-0.4 {-0.016}	-
E	8	0.5 {0.02}	1.3 {0.051}	-	-
9	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
F	10	0	1.5 {0.059}	-1.5 {-0.059}	-
G	11	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
12	0	1.0 {0.039}	-1.0 {-0.039}	-
H	13	0	1.5 {0.059}	-1.5 {-0.059}	-
14	0	1.5 {0.059}	-1.5 {-0.059}	-
15	0	1.0 {0.039}	-1.0 {-0.039}	-
16	3.7 {0.15}	4.7 {0.19}	3.0 {0.12}	1.0 {0.039}
I	17	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
18	0	1.0 {0.039}	-1.0 {-0.039}	-
J	19	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
20	0	1.0 {0.039}	-1.0 {-0.039}	-

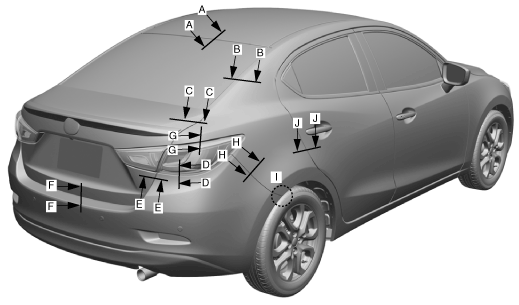

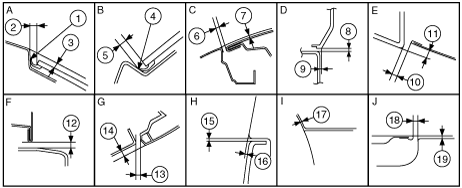

Rear View

4SD

am2zzb00000631

am2zzb00000641

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

0

0.5 {0.02}

-

-

2

4.0 {0.16}

5.7 {0.22}

2.3 {0.091}

-

3

2.0 {0.079}

3.8 {0.15}

0.2 {0.008}

-

B

4

0

0.5 {0.02}

-

-

5

4.0 {0.16}

6.2 {0.24}

1.8 {0.071}

-

C

6

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

7

-0.5 {-0.02}

0.5 {0.02}

-1.5 {-0.059}

-

D

8

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

9

4.9 {0.19}

6.4 {0.25}

3.4 {0.134}

-

E

10

3.7 {0.15}

4.7 {0.19}

2.7 {0.11}

1.0 {0.039}

11

-0.5 {-0.02}

0.5 {0.02}

-1.5 {-0.059}

-

F

12

6.0 {0.236}

8.0 {0.31}

4.0 {0.16}

2.0 {0.079}

G

13

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

14

1.4 {0.055}

2.9 {0.11}

-0.1 {-0.004}

-

H

15

0.5 {0.02}

1.3 {0.051}

0.3 {0.01}

-

16

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

I

17

0

1.5 {0.059}

-1.5 {-0.059}

-

J

18

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

19

0.2 {0.008}

1.2 {0.047}

-0.8 {-0.03}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	0	0.5 {0.02}	-	-
2	4.0 {0.16}	5.7 {0.22}	2.3 {0.091}	-
3	2.0 {0.079}	3.8 {0.15}	0.2 {0.008}	-
B	4	0	0.5 {0.02}	-	-
5	4.0 {0.16}	6.2 {0.24}	1.8 {0.071}	-
C	6	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
7	-0.5 {-0.02}	0.5 {0.02}	-1.5 {-0.059}	-
D	8	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
9	4.9 {0.19}	6.4 {0.25}	3.4 {0.134}	-
E	10	3.7 {0.15}	4.7 {0.19}	2.7 {0.11}	1.0 {0.039}
11	-0.5 {-0.02}	0.5 {0.02}	-1.5 {-0.059}	-
F	12	6.0 {0.236}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
G	13	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	1.2 {0.047}
14	1.4 {0.055}	2.9 {0.11}	-0.1 {-0.004}	-
H	15	0.5 {0.02}	1.3 {0.051}	0.3 {0.01}	-
16	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
I	17	0	1.5 {0.059}	-1.5 {-0.059}	-
J	18	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
19	0.2 {0.008}	1.2 {0.047}	-0.8 {-0.03}	-

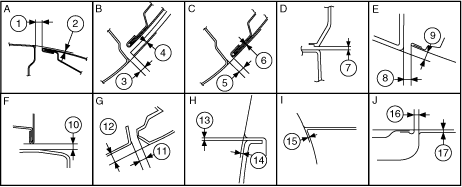

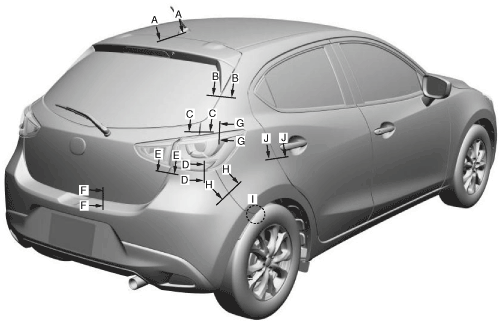

5HB

adejjb00000347

am2zzb00000733

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

6.0 {0.236}

7.0 {0.28}

0.5 {0.02}

1.2 {0.047}

2

-1.0 {-0.039}

0

-2.0 {-0.079}

-

B

3

5.1 {0.20}

7.4 {0.29}

2.8 {0.11}

2.4 {0.094}

4

-5.4 {-0.21}

-3.2 {-0.13}

-7.6 {-0.30}

-

C

5

4.2 {0.17}

5.4 {0.21}

3.0 {0.12}

1.2 {0.047}

6

-0.5 {-0.02}

0.7 {0.03}

-1.7 {-0.067}

-

D

7

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

E

8

4.5 {0.18}

6.5 {0.26}

2.5 {0.098}

2.5 {0.098}

9

-0.4 {-0.016}

1.6 {0.063}

-2.4 {-0.094}

-

F

10

6.0 {0.236}

8.0 {0.31}

4.0 {0.16}

2.0 {0.079}

G

11

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

12

2.5 {0.098}

4.0 {0.16}

1.0 {0.039}

-

H

13

0.5 {0.02}

1.3 {0.051}

0.3 {0.01}

-

14

0.5 {0.02}

1.2 {0.047}

-2.0 {-0.079}

-

I

15

0

1.5 {0.059}

-1.5 {-0.059}

-

J

16

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

17

0.2 {0.008}

1.2 {0.047}

-0.8 {-0.03}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	6.0 {0.236}	7.0 {0.28}	0.5 {0.02}	1.2 {0.047}
A	2	-1.0 {-0.039}	0	-2.0 {-0.079}	-
B	3	5.1 {0.20}	7.4 {0.29}	2.8 {0.11}	2.4 {0.094}
B	4	-5.4 {-0.21}	-3.2 {-0.13}	-7.6 {-0.30}	-
C	5	4.2 {0.17}	5.4 {0.21}	3.0 {0.12}	1.2 {0.047}
C	6	-0.5 {-0.02}	0.7 {0.03}	-1.7 {-0.067}	-
D	7	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
E	8	4.5 {0.18}	6.5 {0.26}	2.5 {0.098}	2.5 {0.098}
E	9	-0.4 {-0.016}	1.6 {0.063}	-2.4 {-0.094}	-
F	10	6.0 {0.236}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
G	11	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	1.2 {0.047}
G	12	2.5 {0.098}	4.0 {0.16}	1.0 {0.039}	-
H	13	0.5 {0.02}	1.3 {0.051}	0.3 {0.01}	-
H	14	0.5 {0.02}	1.2 {0.047}	-2.0 {-0.079}	-
I	15	0	1.5 {0.059}	-1.5 {-0.059}	-
J	16	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
J	17	0.2 {0.008}	1.2 {0.047}	-0.8 {-0.03}	-
