VARIABLE TUMBLE CONTROL SYSTEM (VTCS) SHUTTER VALVE ACTUATOR INSPECTION
CDA011300000W06
Operation Inspection
1. Disconnect the negative battery cable.
2. Remove the VTCS shutter valve actuator.

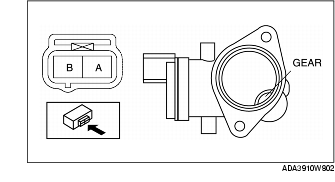

3. Connect the battery positive voltage to terminal A or B, and verify that the gear moves.
-
• If there is no malfunction, carry out the "Circuit Open/Short Inspection".
-
• If there is any malfunction, replace the VTCS shutter valve actuator.
|
Terminal
|
Gear rotation direction
|
|
A
|
B
|
|
B+
|
GND
|
Counterclockwise
|
|
GND
|
B+
|
Clockwise
|
Circuit Open/Short Inspection

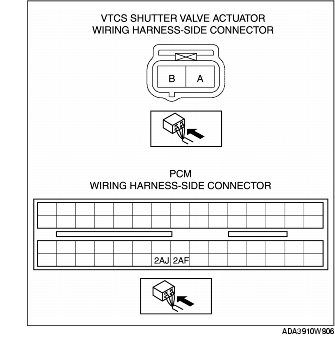

1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
-
• If there is no continuity, the circuit is open. Repair or replace the wiring harness.
-
- VTCS shutter valve actuator terminal A and PCM terminal 2AJ
-
- VTCS shutter valve actuator terminal B and PCM terminal 2AF
Short circuit
-
• If there is continuity, the circuit is shorted. Repair or replace the wiring harness.
-
- VTCS shutter valve actuator terminal A and power supply
-
- VTCS shutter valve actuator terminal A and body GND
-
- VTCS shutter valve actuator terminal B and power supply
-
- VTCS shutter valve actuator terminal B and body GND
