PURGE SOLENOID VALVE INSPECTION

Airflow Inspection

1. Disconnect the negative battery cable.

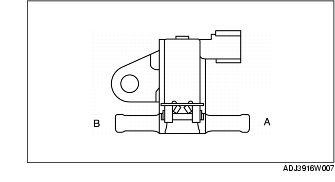

2. Remove the purge solenoid valve.

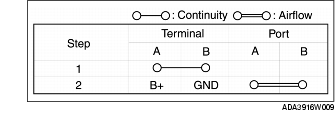

3. Inspect airflow between the ports under following conditions.

• If there is no malfunction, carry out the "Circuit Open/Short Inspection".

• If there is any malfunction, replace the purge solenoid valve.

Circuit Open/Short Inspection

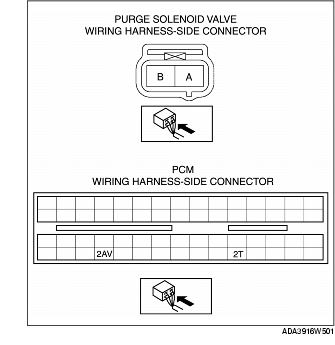

1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)

Open circuit

• If there is no continuity, the circuit is open. Repair or replace the wiring harness.

- Purge solenoid valve terminal A and PCM terminal 2T

- Purge solenoid valve terminal B and PCM terminal 2AV

Short circuit

• If there is continuity, the circuit is shorted. Repair or replace the wiring harness.

- Purge solenoid valve terminal A and body GND

- Purge solenoid valve terminal B and power supply
