ON-BOARD DIAGNOSTIC TEST

id010200801000

DTCs Reading Procedure

1. Perform the necessary vehicle preparation and visual inspection.

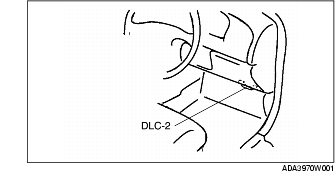

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located as shown in the figure.

3. Retrieve DTCs using the WDS or equivalent.

Pending Trouble Code Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

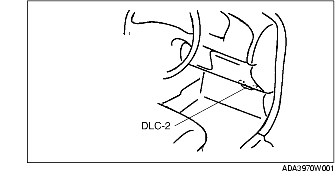

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located as shown in the figure.

3. Retrieve "PENDING TROUBLE CODES" using the WDS or equivalent.

Freeze Frame PID Data Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located as shown in the figure.

3. Record the FREEZE FRAME DATA using the WDS or equivalent.

On-Board System Readiness Tests Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located as shown in the figure.

3. Monitor the OBD systems operating status using the WDS or equivalent.

Diagnostic Monitoring Test Results Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located as shown in the figure.

3. Access to the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by the WDS or equivalent.
