DTC P0108

id010200803500

DTC P0108

MAP sensor circuit high input

DETECTION CONDITION

• The PCM monitors the input voltage from the MAP sensor. If the input voltage at PCM terminal 2S is more than 4.8 V, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (CCM).
• The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
• The PENDING CODE is available if the PCM detects the above malfunction condition.
• The FREEZE FRAME DATA is available.
• The DTC is stored in the PCM memory.

POSSIBLE CAUSE

• MAP sensor malfunction
• Connector or terminal malfunction
• Short to power supply in the wiring harness between MAP sensor terminal B and PCM terminal 2S
• Open circuit in the wiring harness between MAP sensor terminal A and PCM terminal 2AX
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
PERFORM DTC CONFIRMATION PROCEDURE
• Perform the DTC CONFIRMATION PROCEDURE.
• Is the same DTC present?
Yes
Go to the next step.
No
Intermittent concern exists. Go to the INTERMITTENT CONCERN TROUBLESHOOTING procedure.
2
INSPECT MAP SENSOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the MAP sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 7.
No
Go to the next step.
3
INSPECT MAP SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between MAP sensor terminal B (wiring harness-side) and body ground.
• Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
No
Go to the next step.
4
INSPECT MAP SENSOR
• Inspect the MAP sensor.
• Is there any malfunction?
Yes
Replace the MAP sensor, then go to Step 7.
No
Go to the next step.
5
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 7.
No
Go to the next step.
6

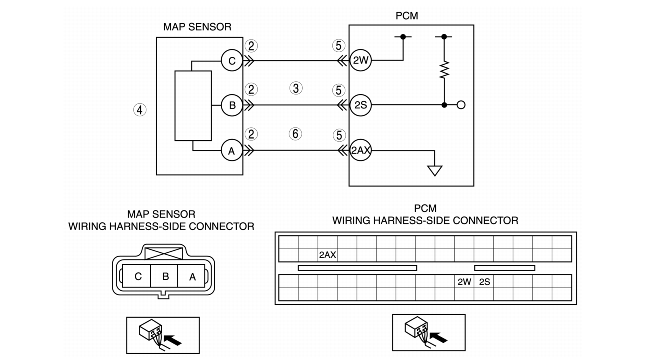

INSPECT MAP SENSOR ground CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect for continuity between MAP sensor terminal A (wiring harness-side) and PCM terminal 2AX (wiring harness-side).
• Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0108 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine.
• Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform the "AFTER REPAIR PROCEDURE".
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
