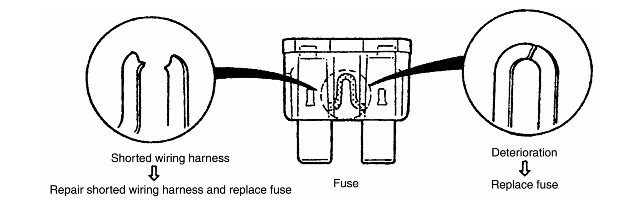

Damaged fuse
|
Related wiring harness
|
|
EGI COMP1
|
• PCM
|
|
IG KEY1
|
• Ignition switch
-
- ENGINE fuse
|
|
MAIN
|
• IG KEY2 fuse
• BTN fuse
• FAN fuse
|
|
IG KEY2
|
• Ignition switch
|
|
FAN
|
• Cooling fan relay No.1
-
- Cooling fan motor
• Cooling fan relay No.2
-
- Cooling fan motor
|
|
ENGINE
|
• Main relay
-
- PCM
• Cooling fan relay No.1
-
- PCM
• Cooling fan relay No.2
-
- PCM
|
|
EGI INJ
|
• PCM
• Fuel pump relay
-
- PCM
|
|
EGI COMP2
|
• PCM
|
|
FUEL PUMP
|
• Fuel pump relay
-
- Fuel pump unit
|
|
BTN
|
• ROOM fuse
|
|
ROOM
|
• DLC-2
|
