IDLE SPEED ADJUSTMENT [ZJ, ZY (WITH WU-TWC)]
id0110008062c8
-
Caution
-
• Changing the TAS while attempting to adjust the idle speed could cause an engine malfunction. Do not change the TAS adjustment position.
1. Complete the engine tune-up preparation.
2. Verify that the ignition timing is within the specification. (See IGNITION TIMING INSPECTION [ZJ, ZY].)
3. Verify that the idle speed is within the specification using the RPM DATA MONITOR function.
-

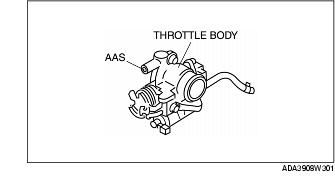

• If not within the specification, adjust the idle speed to within the specification by turning the AAS after verifying that the ignition timing is within the specification.

Idle speed [With WU-TWC]
-
MTX: 600-700 rpm
-
ATX: 650-750 rpm
