COOLING FAN MOTOR INSPECTION [ZJ, ZY]
id011200801819
1. Verify that the battery is fully charged.

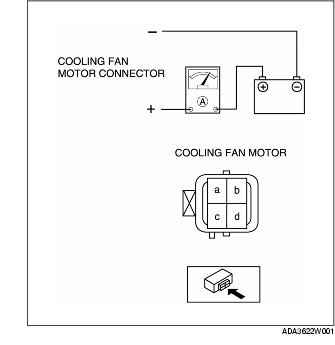

2. Connect the battery positive voltage and a tester to the fan motor connector as shown in the figure.
|
Item
|
Polarity
|
Terminal
|
|
High
|
+
|
c and d
|
|
-
|
a and b
|
|
Low
|
+
|
c or d
|
|
-
|
a and b
|
3. Verify that the fan motor operates smoothly at the standard current draw.
-
• If the fan motor does not operate normally, replace it.
Cooling fan motor current
-
High: 7.9-13.9 A
-
Low: 5.8-11.8 A
