COOLING FAN MOTOR REMOVAL/INSTALLATION [ZJ, ZY]


id011200801919

1. Disconnect the negative battery cable.

2. Remove the cooling fan. (See RADIATOR REMOVAL/INSTALLATION [ZJ, ZY].)

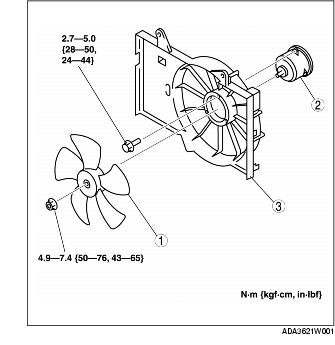

3. Remove in the order indicated in the table.

1
Cooling fan
2
Cooling fan motor
3
Radiator cowling

4. Install in the reverse order of removal.
