INTAKE MANIFOLD

id011300100800

Structure

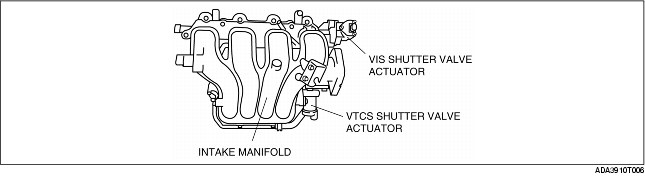

• The intake manifold is composed of the VIS shutter valve actuator and VTCS shutter valve actuator.

• The intake manifold is made of resin for weight reduction.

• By lengthening the long intake pipe, charging efficiency at low to middle engine speeds is enhanced for higher torque.
