AIR CLEANER

id011300101400

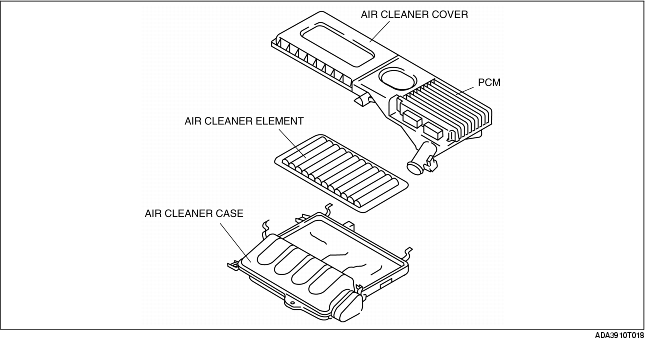

Structure

• The air cleaner is composed of the air cleaner case, air cleaner cover and air cleaner element.

Air cleaner element

• Non-woven fabric (dry type) has been adopted.

Air cleaner structure

• The air cleaner structure curbs intake air resistance for increased torque at all engine speeds.

Air cleaner cover

• The PCM with the PCM case has been integrated. With the integration of the PCM in the air cleaner, the PCM is forced cooled by the intake air. (See Structure.)
