ACCELERATOR CABLE INSPECTION/ADJUSTMENT


id011300805300

1. Verify that the throttle valve is closed.

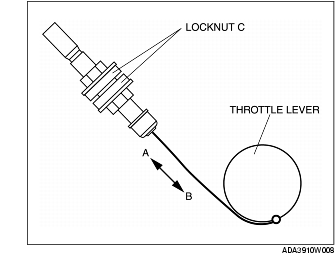

2. Pull the accelerator cable in the directions of A and B, and measure the free play.

• If not as specified, adjust by turning locknut C.
Free play
1.0-3.0 mm {0.04-0.11 in}
Tightening torque
9.8-14.7 N·m {100-150 kgf·cm, 87-130 in·lbf}
