CATALYTIC CONVERTER SYSTEM [WITH WU-TWC]


id0116001014b0

Outline

• Purifies contaminants in the exhaust gas by utilizing a chemical reaction in a three way catalytic converter.

Structure

• Consists of a three way catalytic converter and insulator.
• A catalytic converter utilizing a platinum-palladium-rhodium system has been adopted.

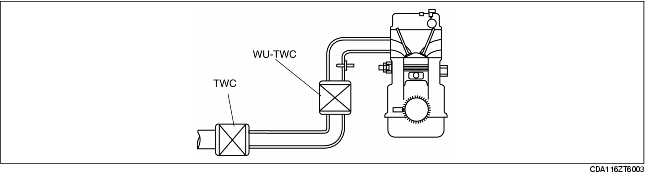

System diagram

Operation

• Contaminants in the exhaust gas (HC, CO, NOX) are purified by oxidization and deoxidization while passing through the catalytic converter.
- Oxidization process
• Noxious HC (hydrocarbon) and CO (carbon monoxide) are bonded to oxygen which is converted to non-noxious carbon dioxide and water.
O2 + HC + CO → CO2 + H2O
- Deoxidization process
• Noxious NOX (nitrogen oxide) is converted to non-noxious nitrogen and oxygen. A part of the oxygen generated at this time is used in the oxidization process.
NOX → N2 + O2
