CHARCOAL CANISTER INSPECTION


id011600800500

1. Remove the charcoal canister.

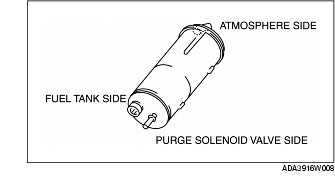

2. Plug the charcoal canister atmosphere side and purge solenoid valve side.

3. Inspect for air leakage when blowing air by mouth from the fuel tank side.

• If air leaks, replace the charcoal canister.
