IGNITION COIL OPERATION [ZJ, ZY]
id011800145915
• The firing timing of the coil is controlled by the PCM by means of a built-in igniter.

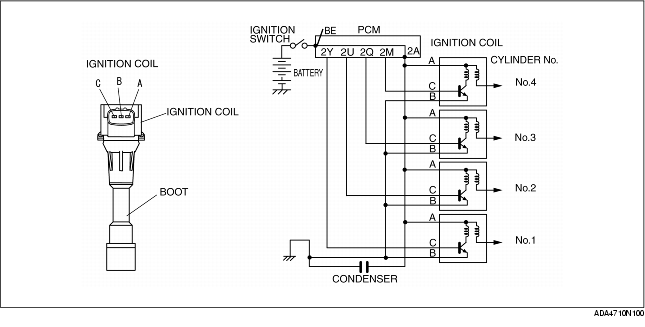

Terminal layout
Terminal
Signal
3 terminals
A
Power supply
B
Ground
C
Ignition coil control signal
