STARTER INSPECTION [ZJ, ZY]
id011900800315
On-vehicle Inspection
1. Verify that the battery is fully charged.
2. Verify that the starter rotates smoothly without any noise when the engine is cranked.
-
• If the starter does not operate normally, inspect the following.
-
- Remove the starter, and inspect the starter.
-
- Inspect the related wiring harness, the ignition switch, and the transaxle range switch (ATX).
No Load Test
1. Verify that the battery is fully charged.

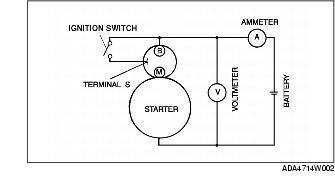

2. Connect the starter, battery, and a tester as shown in the figure.
3. Operate the starter and verify that it rotates smoothly.
-
• If the starter does not operate smoothly, inspect the starter.
4. Measure the voltage and current while the starter is operating.
-
• If it is less than the specification, replace the starter.
Starter no load test voltage
-
11 V
Starter no load test current
-
90 A or less
