INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION
id014000802200
-
Note
-
• Perform the following inspection according to the DATA MONITOR function (indicated by monitor item from here onwards).
Resistance Inspection
1. Disconnect the negative battery cable.
2. Disconnect the MAF/IAT sensor connector.

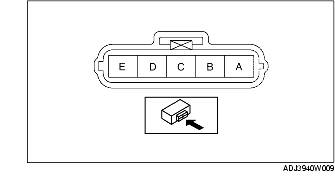

3. Verify that the resistance between terminals D and E is within the specification.
-
• If not within the specification, replace the MAF/IAT sensor.
-
• If the monitor item condition/specification (reference) is not within the specification, even though the resistance is within the specification, carry out the "Circuit Open/Short Inspection".
Resistance
|
Ambient temperature (°C {°F})
|
Resistance (kilohm)
|
|
-20 {-4}
|
13.6-18.4
|
|
20 {68}
|
2.21-2.69
|
|
60 {140}
|
0.493-0.667
|
Circuit Open/Short Inspection
1. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
-
• If there is no continuity, the circuit is open. Repair or replace the wiring harness.
-

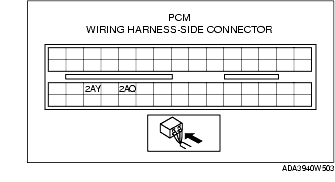

- IAT sensor terminal D and PCM terminal 2AQ
-
- IAT sensor terminal E and PCM terminal 2AY
Short circuit
-
• If there is continuity, the circuit is shorted. Repair or replace the wiring harness.
-
- IAT sensor terminal D and power supply
-
- IAT sensor terminal D and body GND
-
- IAT sensor terminal E and power supply
