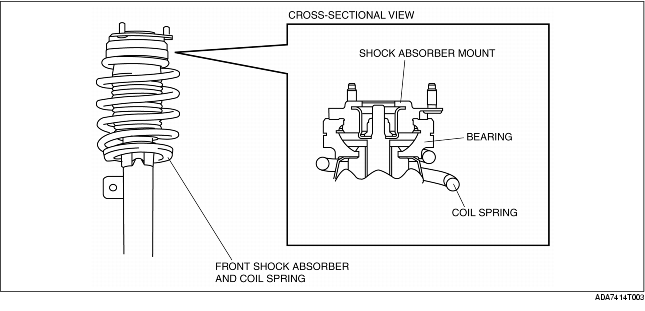

FRONT SHOCK ABSORBER AND COIL SPRING CONSTRUCTION


id021300110900

• A separate input type shock absorber mount, which receives the inputs from the coil spring and the piston rod in separate plates, has been adopted.
