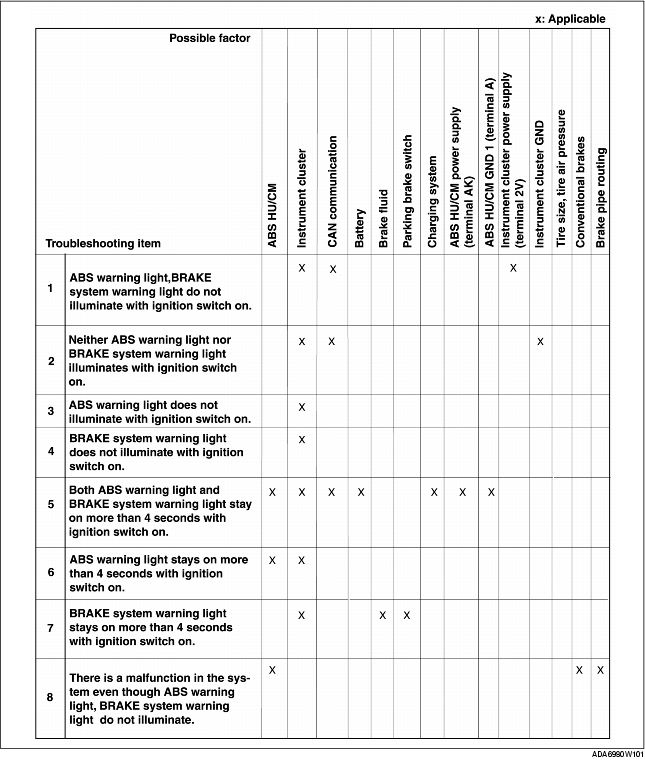

No.
|
Symptom
|
|
1
|
ABS warning light, BRAKE system warning light, do not illuminate with ignition switch on.
|
|
2
|
Neither ABS warning light nor BRAKE system warning light illuminate with ignition switch on.
|
|
3
|
ABS warning light does not illuminate with ignition switch on.
|
|
4
|
BRAKE system warning light does not illuminate with ginning switch on.
|
|
5
|
Both ABS warning light and BRAKE system warning light stay on more than 4 seconds with ignition with on.
|
|
6
|
ABS warning light stays on more than 4 seconds with ingestion switch on.
|
|
7
|
BRAKE system warning light stays on more than 4 seconds with ignition switch on. (Parking brake is released.)
|
|
8
|
There is a malfunction in the system even through ABS warning light, BRAKE system warning light, do not illuminate.
|
