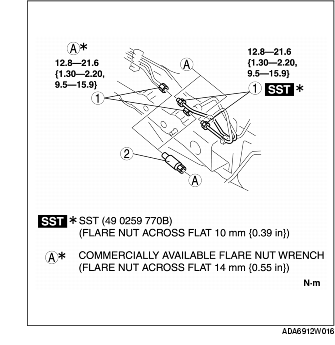

PROPORTIONING VALVE REMOVAL/INSTALLATION


id041100195000

1. Remove the front suspension tower bar.

2. Remove in the order indicated in the table.

1
Brake pipe
2
Proportioning valve

3. Install in the reverse order of removal.
