1. Remove the front suspension tower bar.
2. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)

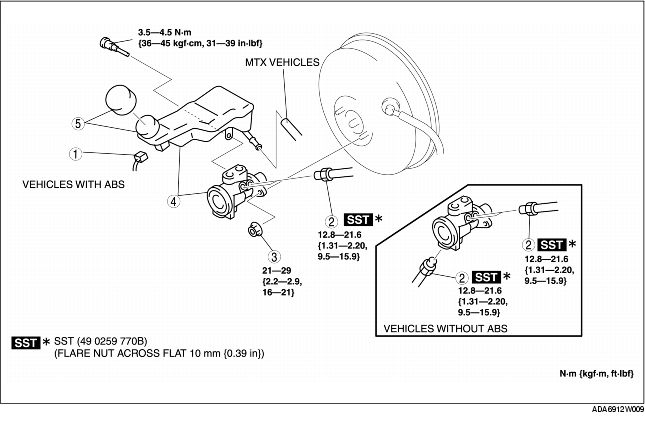

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
|
1
|
Brake fluid level sensor connector
|
|
2
|
Brake pipe
|
|
3
|
Nut
|
|
4
|
Master cylinder component
|
|
5
|
Reservoir and cap
|
