BRAKE SWITCH INSPECTION


id041100801900

Caution
• If the brake switch is removed from the brake pedal, its proper functioning cannot be guaranteed when reinstalled. Therefore, inspect the brake switch by either not removing the brake switch, or by replacing it if removed.

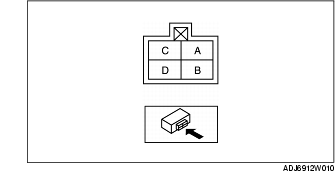

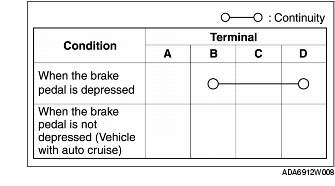

1. Verify continuity as indicated in the table.

• If there is any malfunction, replace the brake switch.
