Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME PID DATA been recorded?
|
Yes
|
Go to next step.
|
No
|
Record FREEZE FRAME PID DATA on repair order, then go to next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Check for related Service Bulletins availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to next step.
|
No
|
Go to next step.
|
||
3
|
VERIFY CURRENT INPUT SIGNAL STATUS
• Turn the ignition switch off.
• Connect breakout box to PCM.
• Turn the ignition switch to the ON position (Engine OFF).
• Measure the voltage at PCM terminal 1AU.
• Are voltage readings below 4.67 V?
|
Yes
|
Go to intermittent concern troubleshooting procedure.
|
No
|
Go to next step.
|
||
4
|
INSPECT ATX CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Inspect ATX connector connection.
• Disconnect ATX connector.
• Check for poor connection (damaged/pulled-out terminals, corrosion etc.).
• Is connection normal?
|
Yes
|
Go to next step.
|
No
|
Repair or replace connector and/or terminal, then go to Step 10.
|
||
5
|

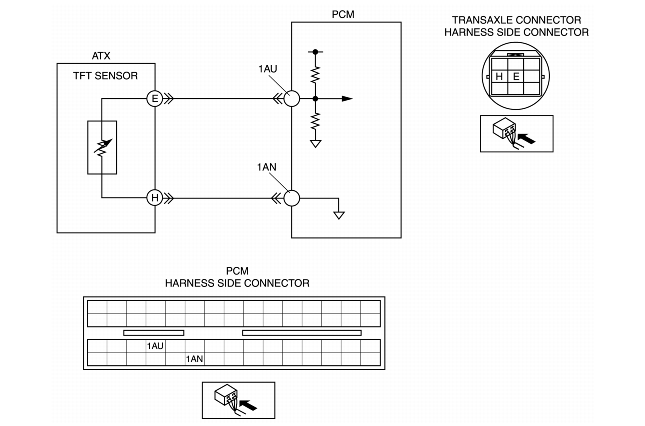

INSPECT TFT SENSOR CIRCUIT
• Turn the ignition switch to the ON position (Engine OFF).
• Measure the voltage at PCM terminal 1AU when connect between ATX connector terminals E and H (vehicle harness-side) using jumper wire.
• Verify that voltage changes to 0.06 V or below.
• Does voltage change?
|
Yes
|
Go to next step.
|
No
|
Go to Step 7.
|
||
6
|
INSPECT TFT SENSOR CIRCUIT FOR OPEN CIRCUIT
• Check of continuity between ATX terminals (transaxle case side) E and H.
• Is there continuity?
|
Yes
|
Replace TFT sensor, then go to Step 10.
|
No
|
Repair or replace harness, then go to Step 10.
|
||
7
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Check for poor connection (damaged/pulled-out terminals, corrosion, etc.).
• Is connection normal?
|
Yes
|
Go to next step.
|
No
|
Repair or replace connector and/or terminal, then go to Step 10.
|
||
8
|
INSPECT HARNESS FOR OPEN CIRCUIT
• Disconnect ATX connector.
• Connect the PCM connector.
• Turn the ignition switch to the ON position (Engine OFF).
• Inspect voltage at ATX connector terminal E (vehicle harness-side).
• Is voltage 5 V?
|
Yes
|
Go to next step.
|
No
|
Repair or replace harness, then go to Step 10.
|
||
9
|
INSPECT ATX CONNECTOR CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect continuity between ATX connector terminal H (vehicle harness-side) and body ground.
• Is there continuity?
|
Yes
|
Go to next step.
|
No
|
Repair or replace harness, then go to next step.
|
||
10
|
VERIFY TROUBLESHOOTING OF DTC P0713 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using WDS or equivalent.
• Drive vehicle under following condition for
150 s or more.
• Is same DTC present?
|
Yes
|
Replace PCM, then go to next step.
(See PCM REMOVAL/INSTALLATION.)
|
No
|
Go to next step.
|
||
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "After Repair Procedure".
• Are any DTCs present?
|
Yes
|
Go to applicable DTC inspection.
|
No
|
Troubleshooting completed.
|
