INTERLOCK CABLE INSPECTION


id051800269200

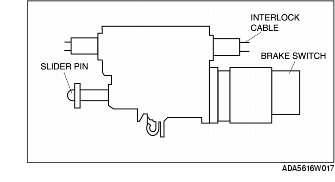

1. Remove the interlock cable.

2. With the slider pin not pushed in, verify that the interlock cable moves freely.

• If there is any malfunction, replace the interlock cable.
• There are malfunctions in the shift-lock and the key interlock, but if there are no malfunctions in the interlock cable, adjust the interlock cable.
