Item
|
Specification
|
|
Heating capacity
|
(kW {kcal/h})
|
3.750 {3,225}
|
|
Airflow volume
(during heater operation)
|
Blower motor
|
(m3/h)
|
275
|
|
Electricity consumption
(during heater operation)
|
Blower motor
|
(W)
|
208
|
|
Cooling capacity
|
(kW {kcal/h})
|
4.480 {3,853}
|
|
Airflow volume (during air conditioner operation)
|
Blower motor
|
(m3/h)
|
400
|
|
Electricity consumption (during air conditioner
operation)
|
Blower motor
|
(W)
|
267
|
|
Magnetic clutch
|
(W)
|
46
|
|
Fan type
|
Blower motor
|
Sirocco fan
|
|
Refrigerant
|
Type
|
R-134a
|
|
Regular amount
(approximate quantity)
|
470 {16.6}
|
|
(g {oz})
|
|
A/C compressor
|
Type
|
Vane-rotary
|
|
Discharge capacity
|
94.5 {94.5, 3.34}
|
|
(ml {cc, fl oz})
|
|
Max. allowable speed
|
6,400
|
|
(rpm)
|
|
Lube oil
|
Type
|
ATMOS GU10
|
|
Sealed volume
(approximate quantity)
|
120 {120, 4.06}
|
|
(ml {cc, fl oz})
|
|
Magnetic clutch clearance
|
0.3-0.5 {0.012-0.019}
|
|
(mm {in})
|
|
Condenser
|
Type
|
Multiflow (sub-cooling type)
|
|
Radiated heat
|
(kW {kcal/h})
|
4.850 {4,171}
|
|
Receiver/drier capacity
|
(ml {cc, fl oz})
|
180 {180, 6.35}
|
|
Desiccant
|
Synthetic zeolite
|
|
Expansion valve
|
Type
|
Block type
|
|
Evaporator
|
Type
|
Double-tank drawn cup
|
|
Refrigerant pressure switch
|
Type
|
Triple-pressure
|
|
Operating pressure
|
|
|
(MPa {kgf/cm2, psi})
|
|

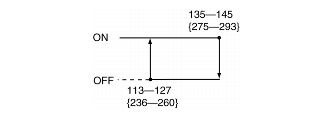

Thermal protector
|
Type
|
Bimetallic (Indirect sensing type)
|
|
Operating temperature
|
|
|
(°C {°F})
|
|
Temperature control
|
Reheat full air mix type
|
|
Fusible plug
|
Melting point
|
(°C {°F})
|
100-107 {212-224}
|
