CRASH ZONE SENSOR REMOVAL/INSTALLATION

Warning

• Handling the crash zone sensor improperly can accidentally deploy the air bag module and pre-tensioner seat belt, which may seriously injure you. Read the service warnings before handling the crash zone sensor.

(See SERVICE WARNINGS.)

(See SERVICE CAUTIONS.)

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the hood lock.

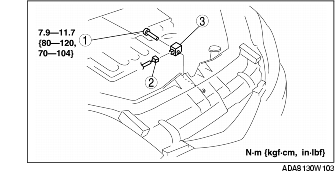

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. Turn the ignition switch to the ON position.

7. Verify that the air bag system warning light illuminates for approx. 3 s and then goes off.

• If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.
