PROCEDURES FOR DETERMINING THE LOCATION OF A MALFUNCTION


id0902e6830500

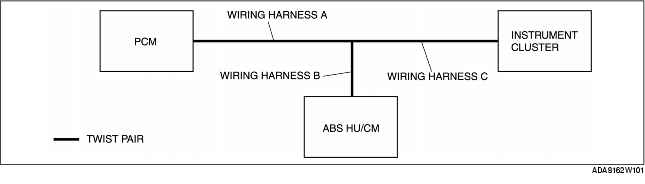

System Wiring Diagram

PCM

1. Check the display of DTC U0121 or U0155 or both, using the WDS or equivalent. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]..)

2. Referring to the following table, determine the malfunctioning part of the CAN system.

X: Normal
-: Communication error

Module

Communication status

Malfunction location

ABS HU/CM

Instrument cluster

PCM
-
-
• Wiring harness A
• PCM
-
X
• Wiring harness B
• ABS HU/CM
X
-
• Wiring harness C
• Instrument cluster

ABS HU/CM

Note
• There is no service code data monitor in the ABS HU/CM that determines signal quality between it and the instrument cluster. Due to this, determine the malfunction location using the data monitor on the instrument cluster side.

1. Check the display of DTC U2523 or both, using the WDS or equivalent. (See DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM].)

2. Referring to the following table, determine the malfunctioning part of the CAN system.

X: Normal
-: Communication error

Module

Communication status

Malfunction location

PCM

Instrument cluster

ABS HU/CM
-
-
• Wiring harness B
• ABS HU/CM
-
X
• Wiring harness A
• PCM
X
-
• Wiring harness C
• Instrument cluster

Instrument Cluster

1. Access and monitor the "PCM MSG" and "ABS MSG" of the PID using the WDS or equivalent.

2. Referring to the PID/DATA MONITOR, confirm the display status of the PID. (See PID/DATA MONITOR TABLE.)

3. Referring to the following table, determine the malfunctioning part of the CAN system.

X: Normal
-: Communication error

Module

Communication status

Malfunction location

PCM

ABS HU/CM

Instrument cluster
-
-
• Wiring harness C
• Instrument cluster
-
X
• Wiring harness A
• PCM
X
-
• Wiring harness B
• ABS HU/CM
