FRONT BUMPER DISASSEMBLY/ASSEMBLY


id091000405200

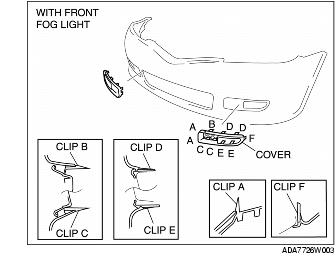

Standard

1. Disengage the clips, then remove the cover.

2. Remove the front fog light. (Vehicles with the front fog light)

3. Assemble in the reverse order of disassembly.

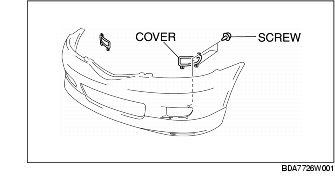

Sport

1. Remove the front fog light.

2. Remove the screws, then remove the cover.

3. Assemble in the reverse order of disassembly.
