FRONT DOOR LOCK ACTUATOR INSPECTION
id091400428700
Door Lock Actuator
1. Apply battery positive voltage to the front door lock actuator terminals and inspect the front door lock actuator operation.
-
• If not as specified, replace the front door lock actuator.
|
Actuator operation
|
Terminal
|
|
F
(A)
|
E
(B)
|
|
Lock
|
B+
|
GND
|
|
Unlock
|
GND
|
B+
|
-
() :
LH
Door Lock-link Switch

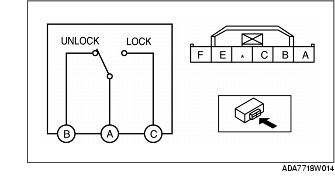

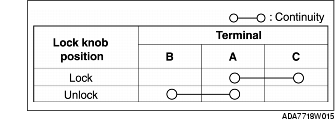

1. Inspect for continuity between the door lock-link switch terminals.
-
• If not as specified, replace the front door lock actuator.
