EXTRACTOR CHAMBER REMOVAL/INSTALLATION


id091600449500

1. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

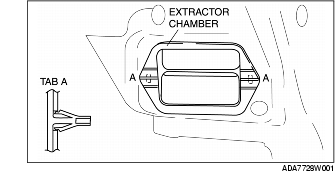

3. Squeeze and disengage tabs A, and remove the extractor chamber from the vehicle side.

4. Remove the extractor chamber.

5. Install in the reverse order of removal.
