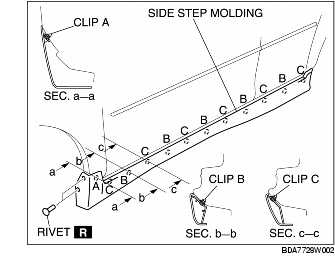

SIDE STEP MOLDING REMOVAL/INSTALLATION


id091600801800

1. Remove the rivets.

2. Pull the side step molding toward you, then disengage clips A, B and C from the body.

3. Remove the side step molding.

4. Install in the reverse order of removal.
