SIDE PANEL REMOVAL/INSTALLATION


id091700454000

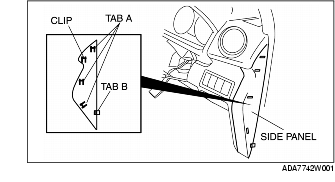

1. Disengage the clip and tabs A using a tape-wrapped flathead screwdriver.

2. Pull the side panel outward, then disengage tab B from the dashboard.

3. Install in the reverse order of removal.
