A-PILLAR TRIM REMOVAL/INSTALLATION


id091700458700

1. Partially peel back the seaming welt.

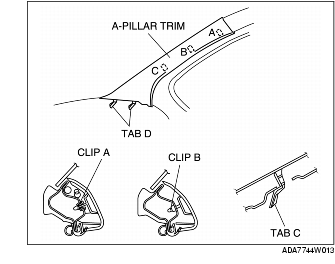

2. Pull the A-pillar trim outward, disengage clips A and B, and draw out tab C from the body.

3. Pull out tabs D from the dashboard, then remove the A-pillar trim.

4. Install in the reverse order of removal.
