FRONT COMBINATION LIGHT REMOVAL/INSTALLATION


id091800464400

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

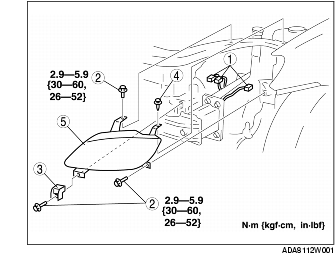

3. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Bracket
4
Fastener
5
Front combination light

4. Install in the reverse order of removal.

5. Adjust the headlight aiming. (See HEADLIGHT AIMING.)
