STEERING ANGLE SENSOR INSPECTION
id091800802700
1. Remove the column cover.

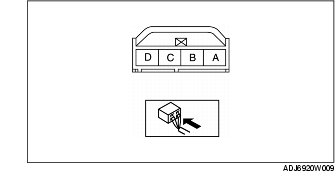

2. Measure the voltage between steering angle sensor terminal A and the ground when the ignition switch is turned to the ON positon.
-
• If there is any malfunction, inspect the wiring harness between steering angle sensor terminal A. Repair or replace if necessary.
Standard
-
12 V
3. Measure the voltage between steering angle sensor terminal C and the ground.
-
• If there is any malfunction, inspect the wiring harness between steering angle sensor terminal C. Repair or replace if necessary.
Standard
-
0V
4. Turn the ignition switch off.
5. Connect the WDS or equivalent to the DLC-2.
6. Select the SWA POS PID.
7. Verify that the SWA POS changes when the steering wheel is turned to the left and right.
-
• If the indicated value is different, replace the steering angle sensor or clock spring.
Standard
-
When the steering wheel is turned to the left:
-
SWA POS changes negatively.
-
When the steering wheel is turned to the right:
-
SWA POS changes positively.
