INBOARD COMBINATION LIGHT REMOVAL/INSTALLATION


id091800810700

1. Disconnect the negative battery cable.

2. Remove the liftgate trim. (See LIFTGATE TRIM REMOVAL/INSTALLATION.)

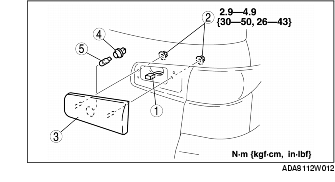

3. Remove in the order indicated in the table.

1
Connector
2
Nut
3
Inboard combination light
4
Socket
5
Back-up light bulb

4. Install in the reverse order of removal.
