STEERING ANGLE SENSOR REMOVAL/INSTALLATION


id091800813600

1. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

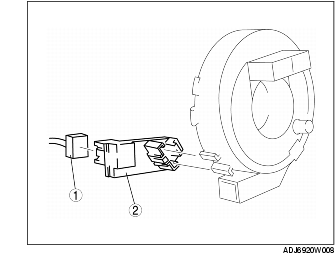

2. Remove in the order indicated in the figure.

1
Steering angle sensor connector
2
Steering angle sensor

3. Install in the reverse order of removal.
