AUDIO UNIT CONSTRUCTION/OPERATION

id092000101600

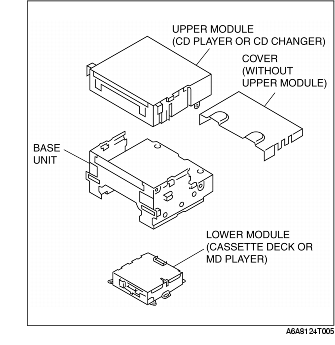

• The audio unit is composed of the base unit, upper module, and lower module.
• Upper and lower module availability depends on vehicle grade.

Terminal Layout and Signal

•  (See CENTER PANEL MODULE CONSTRUCTION.)

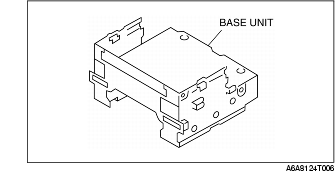

Base Unit

• The base unit controls the AM/FM tuner, and upper/lower modules.
