CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY

id092000804500

Caution

• Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

1. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

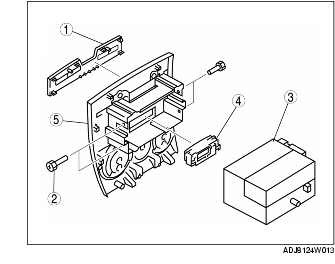

2. Disassemble in the order indicated in the table.


1	Cover (upper module)
2	Screw
3	Audio unit
4	Cover (lower module)
5	Center panel

3. Assemble in the reverse order of disassembly.
