DOOR SPEAKER INSPECTION

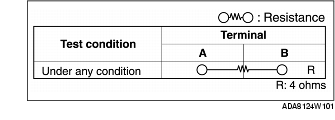

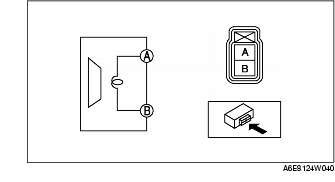

1. Inspect for resistance between the door speaker terminals.

• If there is any malfunction, replace the door speaker.

2. To verify that the door speaker outputs sound, apply voltage to the door speaker and release using a 1.5 V battery.

• If sound is not output, replace the door speaker.
