INPUT/OUTPUT CHECK MODE OPERATION


id092200100900

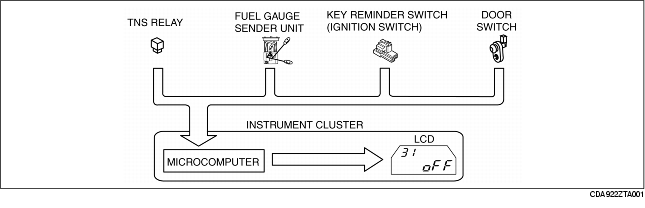

Input Circuit Check

• When the parts listed in the chart are operated and signal is output to the instrument cluster, the built-in microcomputer determines the operability of the input circuit based on that signal.

No.

Parts sending input signal

04
Door switch
08
TNS relay
22
Fuel gauge sender unit
31
Key reminder switch

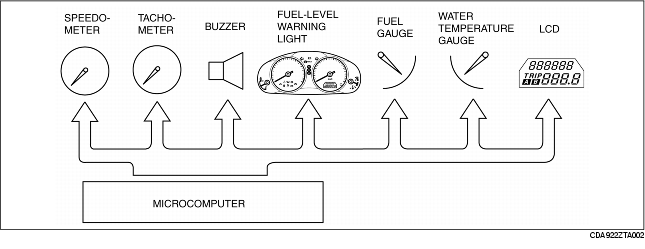

Individual Circuit Check

• By operating the parts listed in the chart, the built-in microcomputer determines the operability of the individual parts.

No.

Parts sending input signal

12
Speedometer
13
Tachometer
14
Buzzer
16
Fuel-level warning light
23
Fuel gauge
25
Water temperature gauge
26
LCD
