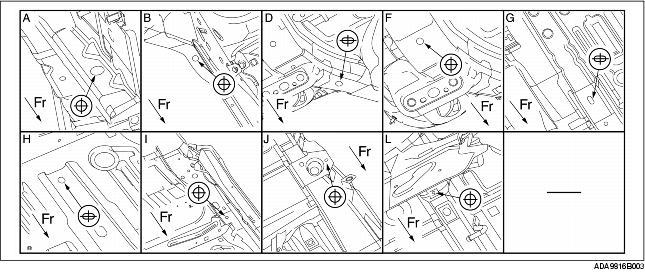

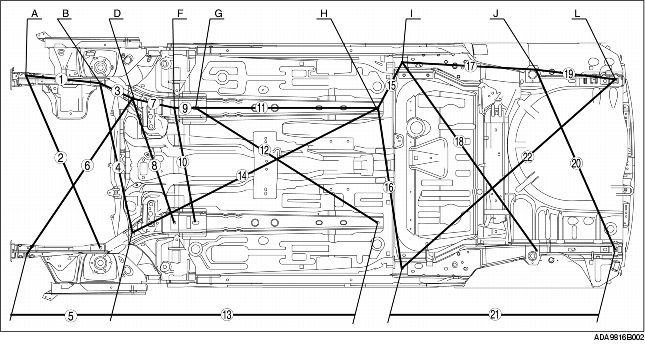

Measured location
|
Dimensions mm {in}
|
|
1
|
423 {16.65}
|
|
2
|
1,062 {41.81}
|
|
3
|
215 {8.46}
|
|
4
|
870 {34.25}
|
|
5
|
625 {24.61}
|
|
6
|
1,078 {42.44}
|
|
7
|
282 {11.10}
|
|
8
|
757 {29.80}
|
|
9
|
120 {4.72}
|
|
10
|
661 {26.02}
|
|
11
|
1,030 {40.55}
|
|
12
|
1,218 {47.95}
|
|
13
|
1,395 {54.92}
|
|
14
|
1,562 {61.50}
|
|
15
|
300 {11.81}
|
|
16
|
920 {36.22}
|
|
17
|
RH:776 {30.55}, LH:781 {30.75}
|
|
18
|
RH:1,318 {51.89}, LH:1,366 {53.78}
|
|
19
|
RH:451 {17.76}, LH:447 {17.60}
|
|
20
|
RH:1,115 {43.90}, LH:1,067 {42.01}
|
|
21
|
RH:1,221 {48.07}, LH:1,222 {48.11}
|
|
22
|
RH:1,614 {63.54}, LH:1,619 {63.74}
|
