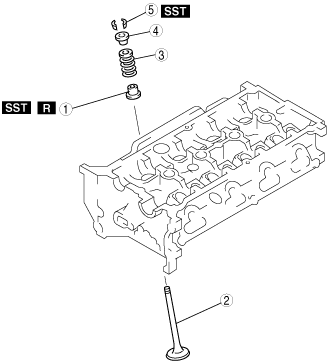

CYLINDER HEAD ASSEMBLY (I)
id011000504300
1. Assemble in the order indicated in the table.
bezeze00000054
|
|
1
|
Valve seal
(See Valve Seal Assembly Note.)
|
|
2
|
Valve
|
|
3
|
Valve spring
|
|
4
|
Upper valve spring seat
|
|
5
|
Valve keeper
(See Valve Keeper Assembly Note.)
|
Valve Seal Assembly Note
1. Press in the valve seal to the valve guide by hand.
2. Install the valve seal using the SST.
bezeze00000055
|
Valve Keeper Assembly Note
1. Install the valve keeper using the SST.
bezeze00000056
|
